Parts Of The Ear With Labeled Diagram And Names

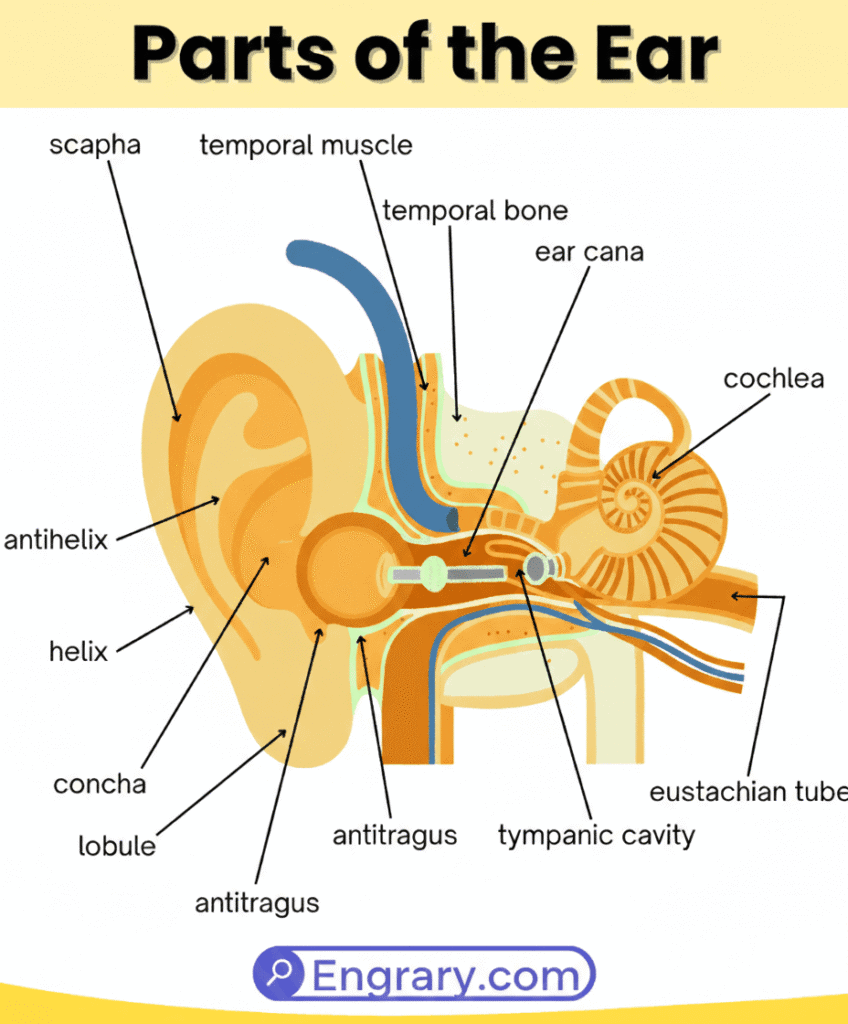

A labeled diagram of the ear shows how sound travels through connected structures. Instead of seeing only the outer ear, you begin to notice the canal, eardrum, tiny bones, and inner chambers working in sequence. Each part has a specific name and role in hearing and balance.

The diagram typically divides the ear into external, middle, and inner parts. Because these regions function as a coordinated system, viewing them together makes the full sound pathway easier to follow.

Main Parts Of The Ear

The ear is divided into three connected regions that guide sound and support balance. Each region contains specific structures that work in sequence.

External Ear

Forming the outer region, the external ear collects sound waves from the environment. It includes the pinna and ear canal, which direct sound inward toward the eardrum. Its curved shape helps guide and slightly filter incoming sound.

Middle Ear

Located between the outer and inner regions, the middle ear transfers vibration. It contains the eardrum and the ossicles, which amplify sound before passing it forward. The Eustachian tube within this region helps regulate pressure.

Inner Ear

Positioned deeper within the ear structure, the inner ear converts vibration into nerve signals. It includes the cochlea and semicircular canals, which support hearing and balance. The auditory nerve carries signals from this region to the brain.

External Parts Of The Ear

The external ear gathers sound waves and directs them inward. These parts are visible and form the entry point of the hearing system.

Pinna

Forming the outer curved structure, the pinna collects sound waves from the environment. Its shape helps direct sound into the ear canal. It also slightly influences how sound is detected from different directions.

Ear Canal

Extending inward from the pinna, the ear canal carries sound waves toward the eardrum. Its narrow passage protects deeper structures. Small hairs and wax help prevent dust from entering.

Earlobe

Located at the lower portion of the outer ear, the earlobe consists mainly of soft tissue. While it does not play a direct role in hearing, it forms part of the external ear structure.

Middle Ear Parts

The middle ear transfers sound vibrations from the outer ear to the inner ear. These parts amplify sound and regulate pressure within the ear.

Eardrum

Acting as a thin membrane between the outer and middle ear, the eardrum vibrates when sound waves reach it. These vibrations begin the mechanical process of hearing. Its movement passes energy to the small bones behind it.

Ossicles

Within the middle ear, the ossicles are three tiny bones called the malleus, incus, and stapes. They amplify vibrations from the eardrum and transfer them forward. Their linked motion increases the strength of sound signals.

Eustachian Tube

Connecting the middle ear to the throat region, the Eustachian tube regulates air pressure. It opens briefly during swallowing or yawning to balance internal pressure. This adjustment supports proper vibration of the eardrum.

Malleus

Connected directly to the eardrum, the malleus is the first of the three tiny ossicle bones. When the eardrum vibrates, it transfers that motion to the malleus. Its movement begins the amplification process inside the middle ear.

Incus

Positioned between the malleus and stapes, the incus acts as a linking bone. It receives vibration from the malleus and passes it forward. This transfer strengthens the sound signal before it reaches the inner ear.

Stapes

Acting as the final ossicle in the chain, the stapes delivers vibration to the inner ear. Its small footplate presses against the oval window. This motion sends vibration into the fluid-filled chambers of the inner ear.

Inner Ear Parts

The inner ear converts sound vibrations into nerve signals and helps maintain balance. These parts contain fluid filled chambers that respond to movement and vibration.

Cochlea

Shaped like a small spiral shell, the cochlea transforms vibration into electrical signals. Inside it, tiny hair cells respond to fluid movement caused by sound. These signals are then sent forward for interpretation.

Semicircular Canals

Arranged in three curved loops, the semicircular canals detect head movement. Fluid inside them shifts during motion, which stimulates sensory cells. This process supports balance and spatial awareness.

Auditory Nerve

Extending from the inner ear to the brain, the auditory nerve carries electrical signals created in the cochlea. These signals are interpreted as sound. It forms the communication link between hearing structures and the brain.

Vestibule

Located between the cochlea and semicircular canals, the vestibule detects head position and linear movement. It works with the semicircular canals to maintain balance. Its sensory receptors respond to changes in motion and orientation.

Sound Path Through The Ear

Hearing follows a clear sequence as sound travels through connected structures.

Sound waves enter through the pinna and move along the ear canal toward the eardrum. The vibrating eardrum transfers motion to the malleus, incus, and stapes, which amplify the vibration. The stapes sends this energy into the cochlea, where fluid movement stimulates sensory cells. These signals then travel through the auditory nerve to the brain.

FAQs About Parts Of The Ear

Parts Of The Ear Key Takeaways

The parts of the ear function as a coordinated system for hearing and balance. The external ear collects sound waves, the middle ear amplifies vibration through the ossicles, and the inner ear converts vibration into nerve signals. At the same time, the semicircular canals detect movement to support balance. As sound travels inward through each region, mechanical vibration changes into electrical impulses carried by the auditory nerve. Although ear shape may vary slightly, the internal structure remains consistent.
